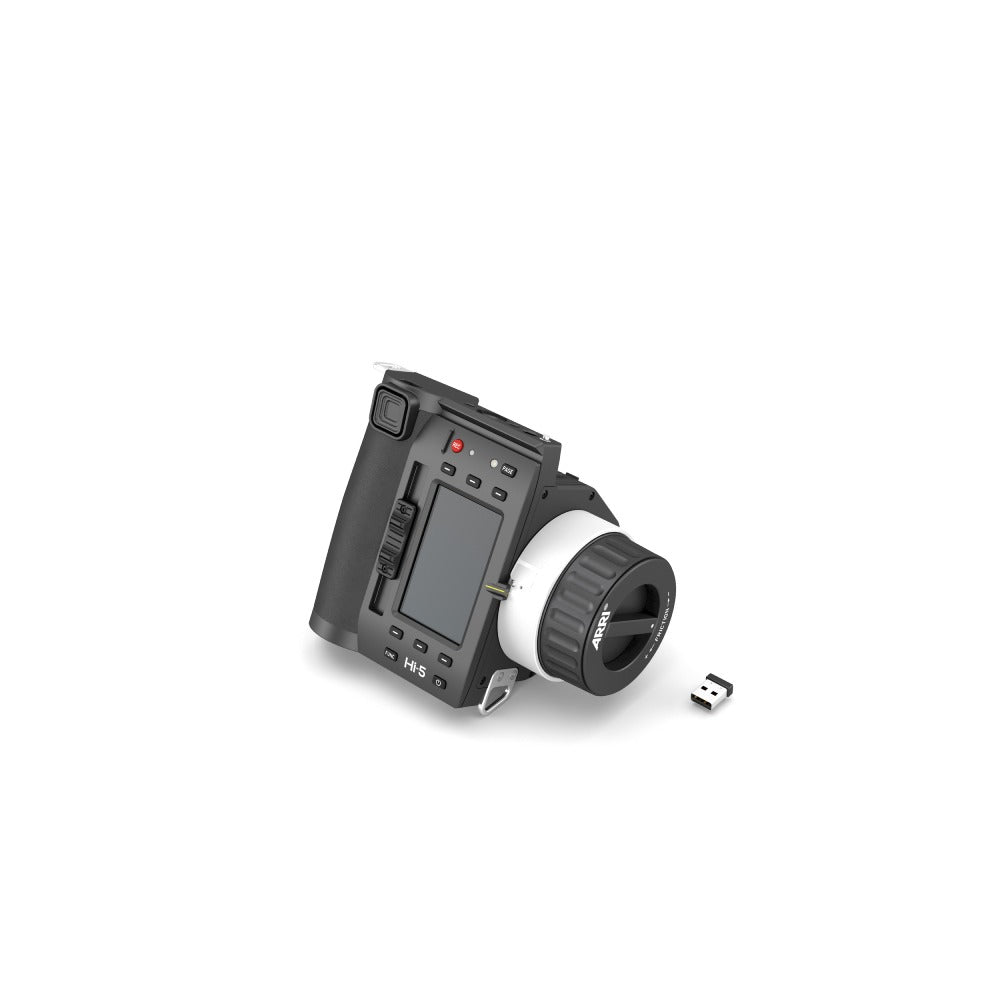

ARRI Hi-5 Hand Unit Body Kit

ARRISKU: KK.0039973

Price:
Sale price$16,115.00
Stock:
Call us for stock check or lead time.

Need more Info? Check out our FAQ and our T's & C's.

Description

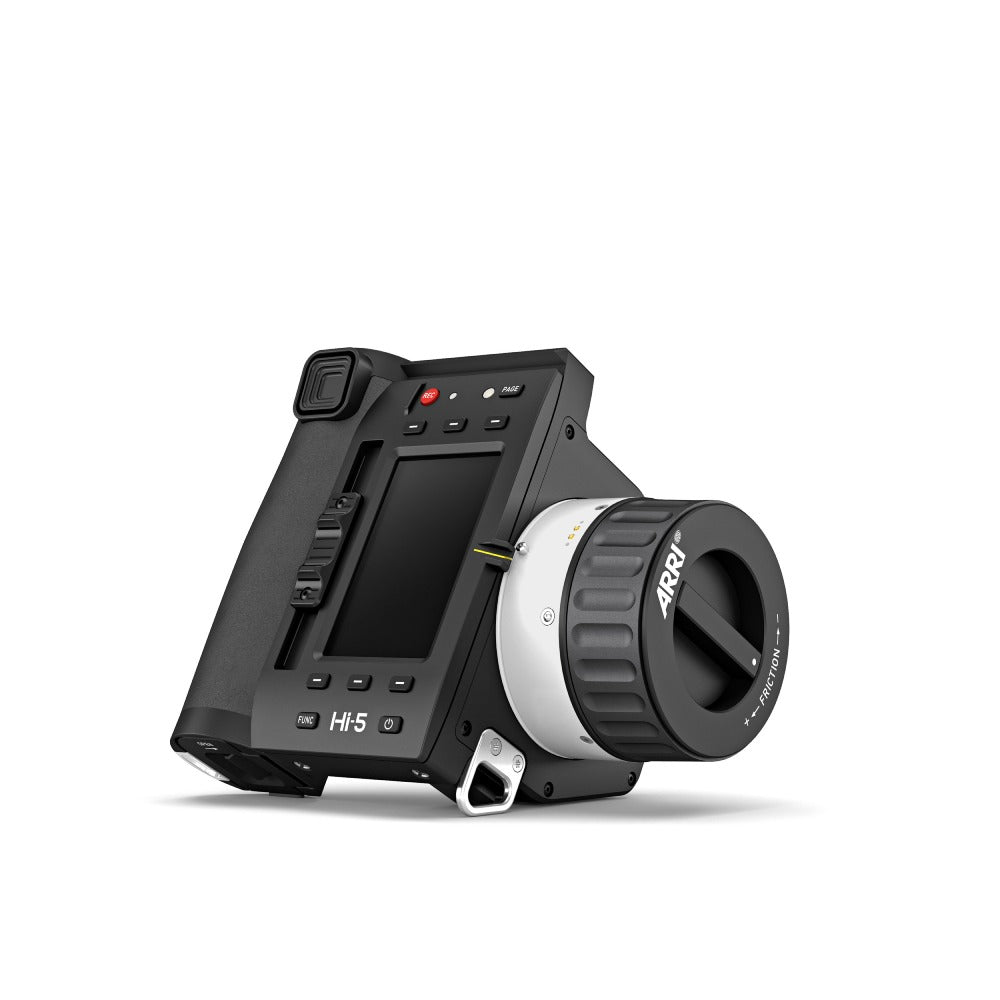

K2.0037280, Hi-5 Hand Unit Body Naked

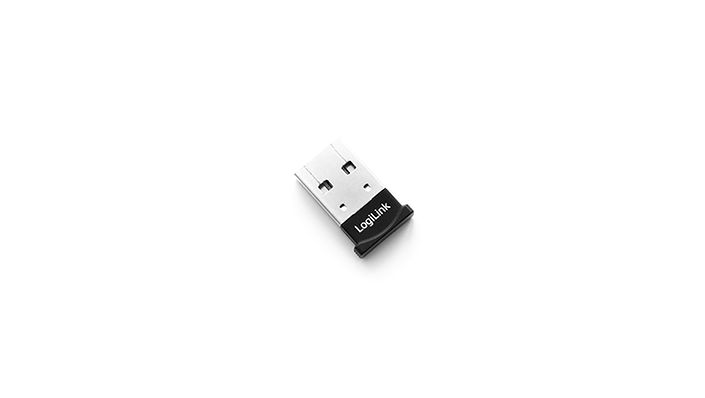

K2.0039838, Bluetooth Dongle

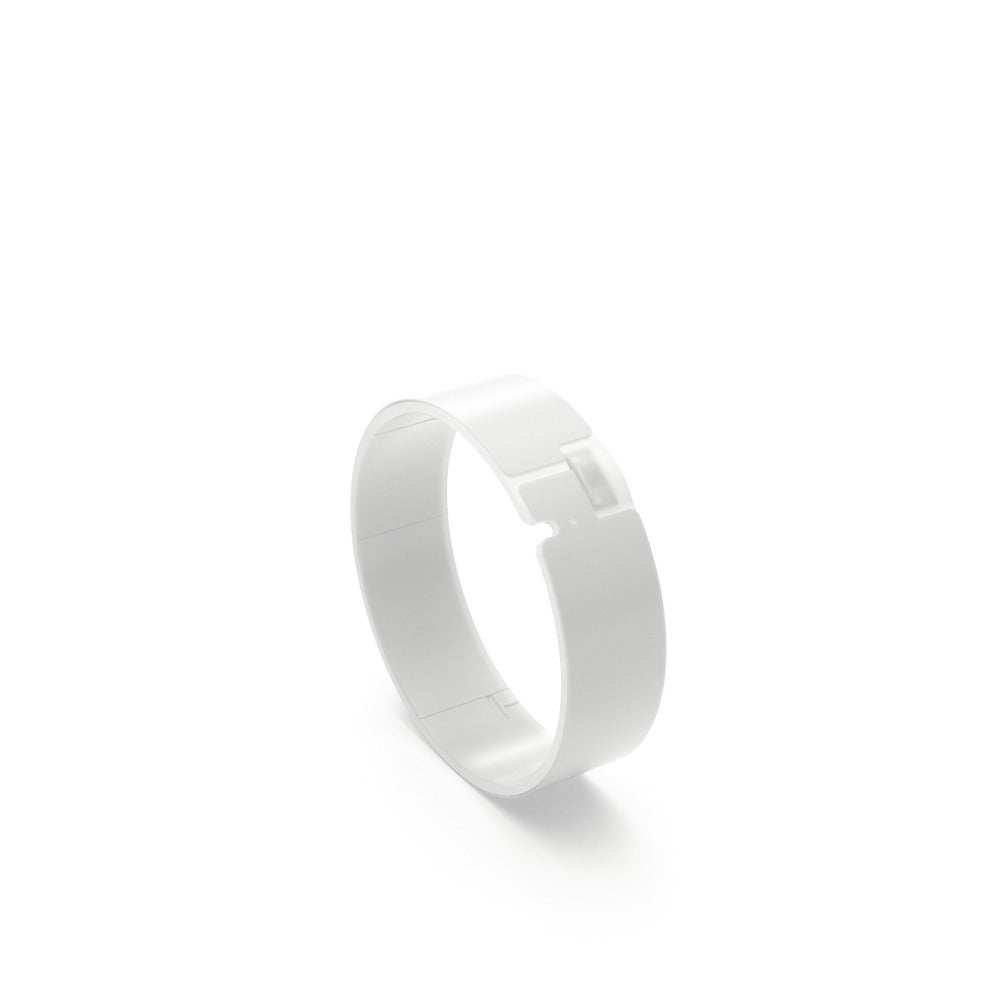

K2.0037463, Smart Focus Ring Blank

Focus Knob:

LED backlit rotary knob with adjustable friction, 3.0” diameter, 16 bit native encoder resolution

Iris Slider:

Fully sealed slider mechanism, 14 bit native encoder resolution

Force Pad:

Force sensitive joystick, x/y-direction

Display:

Transflective TFT-LCD display (readable in bright sunlight) 3.0" diagonal

Weight:

830 g / 29.30 oz (incl. Bluetooth dongle and Smart Focus Ring Blank)

Interfaces:

1x LBUS (4pin Lemo)

1x SERIAL (4pin Lemo)

1x Radio Module Interface

1x USB-A

1x USB-C

Power Supply:

ARRI LBP-3500 battery pack

LBP Battery Charger

NP-F550 battery (Sony) or compatible batteries

Power via USB-C port through an external power supply

Power via LBUS interface

Supply Voltage:

LBUS interface: 10.5 V – 34.0 V

Battery: 7.4 V

Power Consumption:

Without radio module: 222 mA @ 7.4 V
With RF-EMIP radio module: typ. 270 mA @ 7.4 V

With RF-2400 radio module: typ. 370 mA @ 7.4V

With RF-900 radio module @ 100 mW: typ. 330 mA @ 7.4 V

With RF-900 radio module @ 1 W: typ. 480 mA @ 7.4 V

Operating Temperature:

-20°C to +50°C (-4°F to +122°F)
