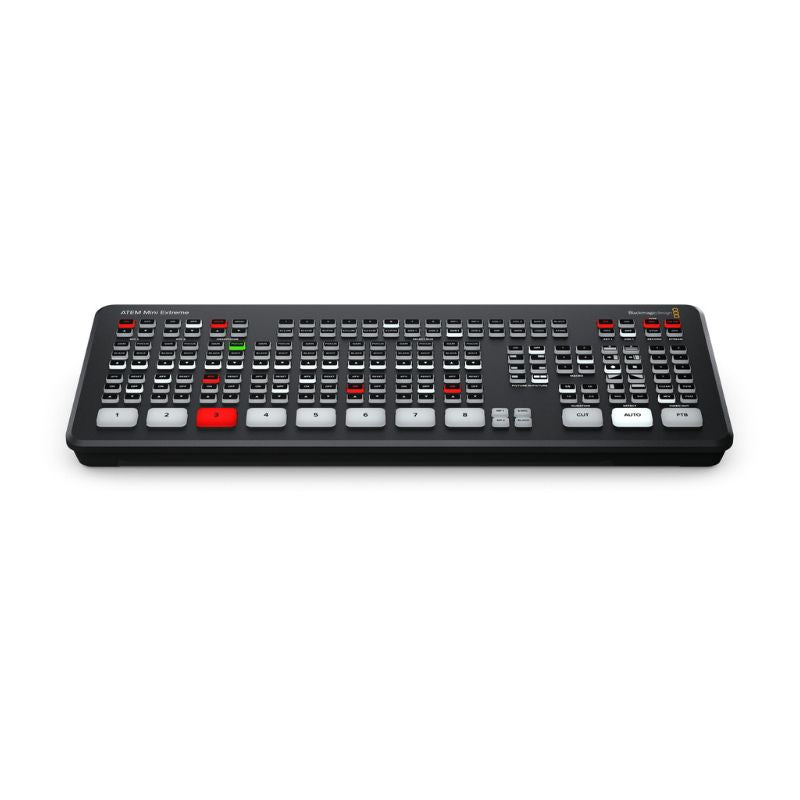

ATEM Mini Extreme is an advanced switcher for true professionals! You get all the ATEM Mini Pro features plus 8 HDMI inputs, 2 separate HDMI outputs, 2 USB ports and a headphone connection. There are also 4 chroma keyers, 6 picture in picture DVEs, 2 media players, and a multiview with up to 16 views!
Connections
Total Video Inputs
8
Total Outputs
4
Total Aux Outputs
2
Total Audio Inputs
2 x 3.5mm stereo mini jack.
Total Audio Outputs
1 x 3.5mm stereo mini jack.
Timecode Connection
None
HDMI Video Inputs
8 x HDMI type A, 10-bit HD switchable.
2 channel embedded audio.
Video Input Re-Sync
On all 8 HDMI inputs.
Frame Rate and Format Converters
On all 8 HDMI inputs.
HDMI Program Outputs
2
Ethernet
Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
Computer Interface
2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Product Specifics
Upstream Keyers
4
Downstream Keyers
2
Advanced Chroma Keyers
Up to 4
Linear/Luma Keyers
Up to 4
Transition Keyer
DVE only.
Total Number of Layers
9
Pattern Generators
5
Color Generators
2
DVE With Borders and Drop Shadow
2
Interface
Minimum monitor resolution of 1366 x 768.
Audio
Audio Mixer
11 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Analog Input
Unbalanced stereo
Analog Input Delay
Up to 8 frames
Input Impedance
1.8k
Max Input Level
+6dBV
Mic Plug In Power
Available on both 3.5mm mini jack connections.
Streaming
Direct Streaming
ATEM Mini Extreme supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.
