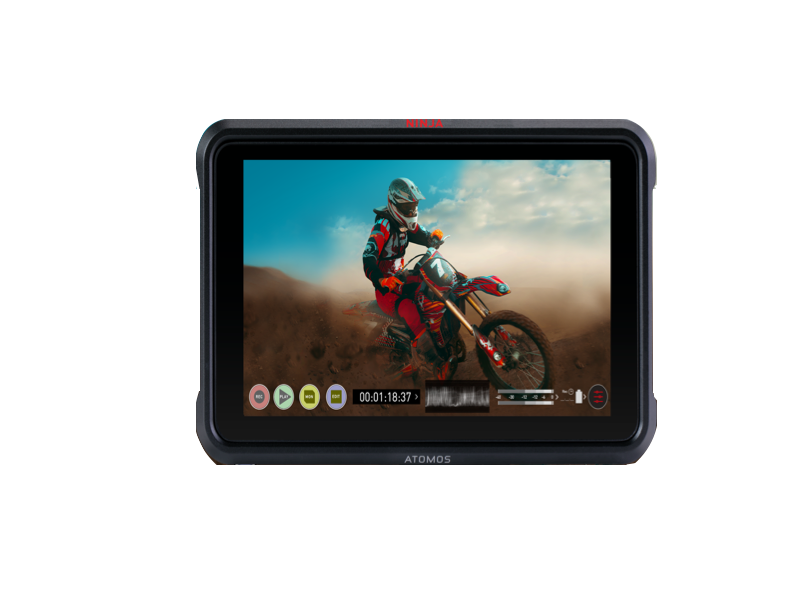

Atomos Ninja V
Including GST
Eliminate your camera’s internal compression and time limits – record up to 4Kp60 10-bit HDR video direct from your camera's sensor over HDMI 2.0.
The Ninja V displays 10+ stops of dynamic range in realtime from Log/ PQ/HLG signals. See your images clearly in daylight on the near edge-to-edge anti-reflection screen. Ninja V can be calibrated for perfect colour accuracy every time, and also enables playout to HDR or SDR TV.
Included as Standard
| Accessories |
SDI Cable |
| Power | Mains Cable Sony Batteries |
| Memory | Minimum 240GB SSD & Reader |
Key Specs
Display
| Panel Type | IPS-Type LCD |
| Display Size | 5.0" / 12.7 cm |
| Screen Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Touchscreen | Yes |
| Maximum Brightness | 1000 cd/m2 |
| Bit Depth / Colour Support | 8-Bit+FRC (1.07 Billion Colours) |
| Pixels Per Inch (ppi) | 427 ppi |
| Color Gamut | 100% Rec. 709 |
| Real-Time LUT Monitoring | SDR |
I/O
| Video | 1 x HDMI Type A (HDMI 2.0) Output 1 x HDMI Type A (HDMI 2.0) Input |
| Embedded Audio | HDMI: 8-Channel |
| Audio | 1 x 3.5 mm Mic/Line Input 1 x 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power | 1 x Barrel Input |
| Other I/O | 1 x LANC (2.5 mm) |
| Card Slot | None |
Format Support
| Video Format | HDMI (8/10-Bit 4:2:2) DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 120/60/50/30/25/24 1080i: 60/50 720p: 60/50 |
| Video Signal Conversion | HDMI to SDI DCI 4K: 24/25/30/50/60 UHD 4K: 24/25/30/50/60 1080p: 24/25/30/50/60/100/120 1080i: 50/60 720p: 50/60 |
Recording
| Pulldown Conversion | 2:2, 3:2 |
| Encoding Formats | 3840 x 2160 ProRes 422, LT, HQ DNxHR HQ, HQX, SQ, LB |
| Recording Media | 1 x 2.5" SSD (SATA III) 1 x AtomX SSDmini (SATA III) |
Power
| DC Input Power | 6.2 to 16.8 VDC |
| Battery Type | 1 x L-Series |
| Power Consumption | 10 W (Typical) 19 W (Maximum) |
