Total Video Inputs
4
Total Outputs
2
Total Aux Outputs
1
Total Audio Inputs
2 x 3.5mm stereo mini jack.
Total Audio Outputs
None, embedded audio only.
Timecode Connection
None
HDMI Video Inputs
4 x HDMI type A, 10-bit HD switchable.
2 channel embedded audio.
Video Input Re-Sync
On all 4 HDMI inputs.
Frame Rate and Format Converters
On all 4 HDMI inputs.
HDMI Program Outputs
1
Ethernet
Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
Computer Interface
1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Audio
Audio Mixer
6 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Analog Input
Unbalanced stereo
Analog Input Delay
Up to 8 frames
Input Impedance
1.8k
Max Input Level
+6dBV
Mic Plug In Power
Available on both 3.5mm mini jack connections.
Streaming
Direct Streaming

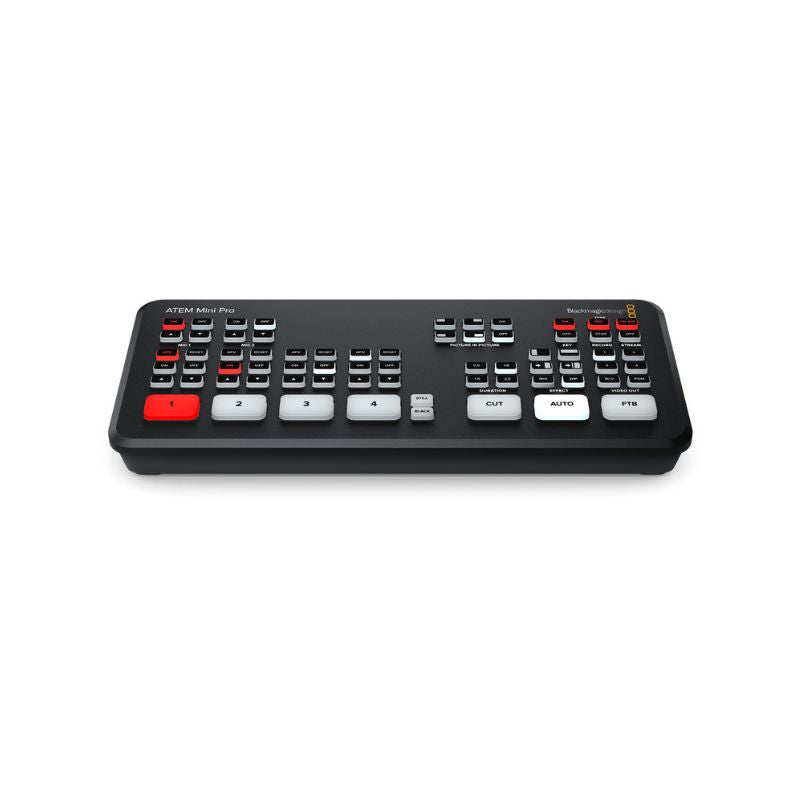

ATEM Mini Pro supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.
Recording
Direct Recording
1 x USB-C 3.1 Gen 1 expansion port for external media to direct record a .mp4 H.264 with AAC audio at the ATEM video standard.
Media Format
Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
