The Leica Summicron-C series of lenses have superb, crisp image performance, and the compact design make make them ideal for gimbal work and overall smaller rigs.
They feature an aperture of t2.0 across the entire line of lenses and also a constant 95mm diameter, which means lens swaps on set should be quick and efficient.
They feature an image circle of over 34mm, which easily covers the Super-35mm format, as well as covering the larger RED Epic Dragon sensor in 6K mode and Arri Alexa LF Opengate.

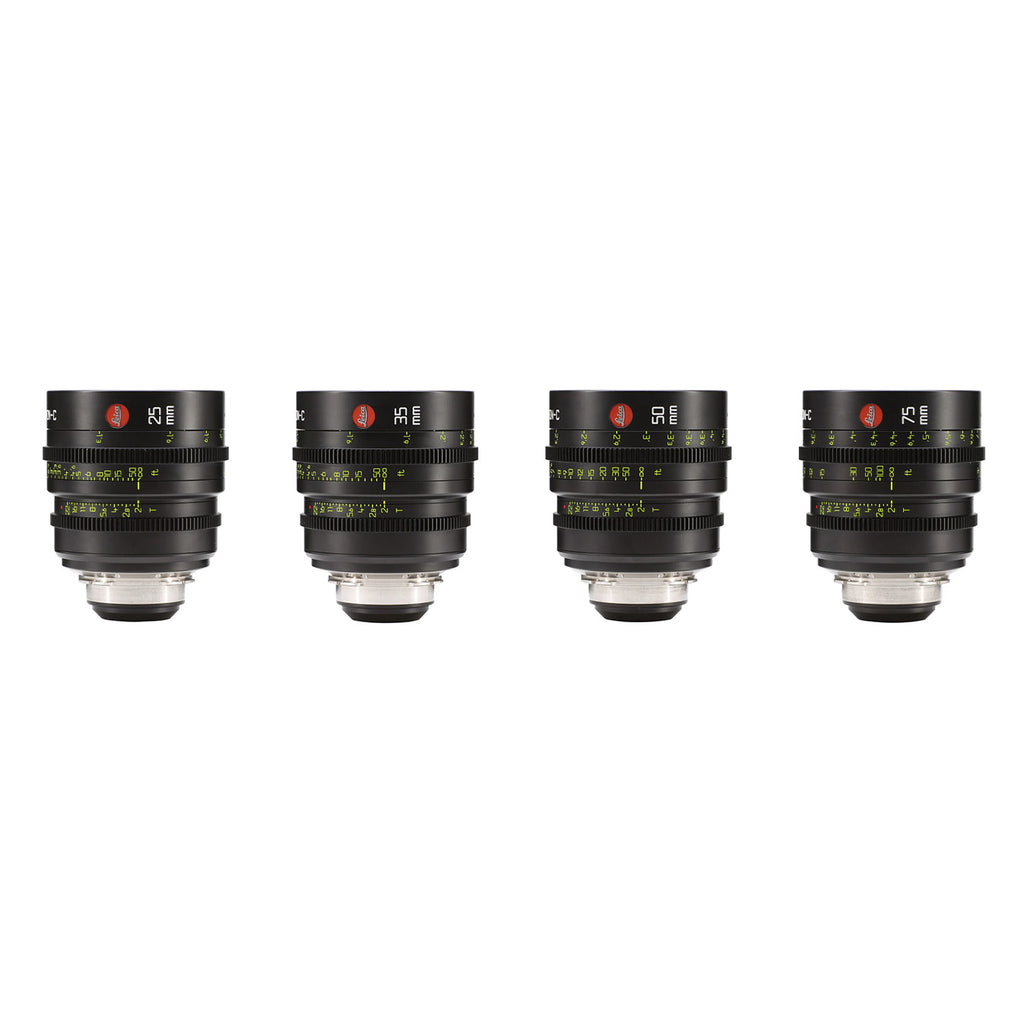

The 4 lens set includes the 25mm, 35mm, 50mm & 75mm.
Key Specs
| Mount |
Stainless steel ARRI-PL |
| Focal Length |
18mm
25mm
35mm
50mm
75mm
100mm |
| Coverage |
>34mm diameter image circle |
| Aperture |
T2.0-22 + closed |
| Rotation |
Iris Scale: 77°
Focus Range: 300° |
| Close Focus |
Marked:
18mm: 12" (30.5 cm)
25mm: 12" (20.5 cm)
35mm: 14.4" (36.6 cm)
50mm: 24" (60.96 cm)
75mm: 31" (78.7 cm)
100mm: 39" (99.1 cm) |
| Front Diameter |
95 mm |
